ACMER X1 Laser Engraver on Kickstarter: 120W Water-Cooled Diode Laser for Full-Sheet Fabrication
- Michael
- Jul 2
- 9 min read
Most diode laser engravers hit a hard ceiling somewhere between 40W and 80W before heat becomes the limiting factor. More power means more heat, and without real thermal management, longer jobs produce thermal rolloff, inconsistent cut depth, and accelerated diode degradation. The ACMER X1 laser engraver on Kickstarter addresses that ceiling directly with a compressor-based water cooling system that holds the 120W diode module at sub-30°C regardless of job duration, delivering consistent output across a full working session.
The campaign raised $568,296 from 144 backers, 57 times its original $9,963 goal. The ACMER laser engraver line comes from ACMER, founded in 2021 and led by two MIT PhDs. The X1 is available in three configurations: the base X1 at $2,799 (2.62' x 2.62'), the ACMER X1 Plus at $3,699 (4.10' x 4.10'), and the ACMER X1 Ultra at $4,299 (4.10' x 8.04') for full 4x8 sheet processing. All original campaign orders have been dispatched as of May 2026.
Quick Verdict
Who Is It For?
Small fabrication shops, workshop owners, and professional makers who need continuous high-power laser output and currently manage separate machines for cutting, metal marking, and CNC relief work. The base X1 suits buyers focused on laser cutting and engraving in a smaller footprint. The ACMER X1 Plus and X1 Ultra are for anyone who needs the full platform with built-in enclosure, larger format, and compatibility with the IR and CNC modules.
Main Strengths
IntelliCool™ compressor water cooling holds the 120W diode module at sub-30°C with 400-600W cooling capacity and a COP of 200-300%, preventing the thermal rolloff that limits air-cooled high-power lasers on extended production runs.
Three switchable power modes (20W, 60W, 120W) on the same head without hardware changes: 20W for fine detail and photo engraving, 60W for combined engrave-and-cut jobs, 120W for maximum depth and throughput on thick stock.
Full 4x8 sheet capacity on the ACMER X1 Ultra with a 1,250 x 2,450mm work area and dual-motor Y drive, matching the standard panel format used across US and EU markets for signage, furniture, and large prototypes.
3-in-1 head system on Ultra configurations: 120W diode, 4W IR for metal and ceramic marking, and the Chisel™ 200W CNC module for 3D relief and pockets, all swapping in 20 seconds with auto-recognition.
ACMER Studio™, free with no subscription, with SmartVision™ camera alignment, auto-nest with kerf-aware spacing, and full LightBurn and LaserGRBL compatibility.
Main Limitations
The Chisel™ CNC spindle runs at 800mm/min, considerably slower than dedicated CNC routers. If CNC milling is the primary use case rather than a supplementary function, a dedicated machine remains worth considering.
Founded in 2021, ACMER's X1 is their most ambitious product to date. The machine is still relatively new, so long-term real-world durability under continuous 120W production use remains to be seen.
144 backers means a smaller community than established laser platforms. Third-party tutorials, troubleshooting resources, and user-generated project libraries are more limited in the near term.
Is the ACMER X1 Worth Backing?
For makers and small shops that want continuous high-power laser output and currently manage separate machines for cutting, metal marking, and CNC work, the ACMER X1 laser engraver on Kickstarter makes a strong case at its price point. All original campaign orders shipped as of May 2026.
ACMER X1 Price and Late Pledge Configurations
Late pledge pricing on this ACMER laser engraver covers six configurations. The base ACMER X1 starts at $2,799 for a 2.62' x 2.62' work area with the 120W diode head but no built-in enclosure. The X1 Bundle at $3,569 adds the enclosure and air purifier. The ACMER X1 Plus at $3,699 steps up to 4.10' x 4.10' with a built-in enclosure and CNC module compatibility. The ACMER X1 Ultra at $4,299 covers the full 4.10' x 8.04' format, also with built-in enclosure. The Ultra 2-in-1 at $4,699 adds the 4W IR module. The Ultra 3-in-1 at $4,999 includes all three heads. US shipping adds $150 on most configurations; EU shipping runs $250-300.
One consideration is that the base X1 does not include the enclosure. The add-on cost is $499, which pushes the effective entry to $3,298. The ACMER X1 Plus at $3,699 includes the enclosure, CNC module compatibility, and a larger work area for $400 more, a cleaner entry point for most buyers. For anyone who wants all three heads from day one, the ACMER X1 Ultra 3-in-1 at $4,999 is the most direct path.
What Is the ACMER X1 Laser Engraver and What Problem Does It Solve?
What Is the ACMER X1 Laser Engraver?
The ACMER X1 is a fully enclosed laser fabrication machine with a 120W diode laser module and compressor-based water cooling. It operates at 450nm wavelength and reaches engraving speeds up to 30,000mm/min. The machine accepts three interchangeable heads: the 120W diode laser for cutting and engraving, a 4W infrared laser at 1064nm for metal and ceramic marking, and the Chisel™ 200W CNC router for 3D relief machining. Head swaps take approximately 20 seconds with auto-recognition and leak-proof dry-break couplers that isolate coolant automatically when disconnected.

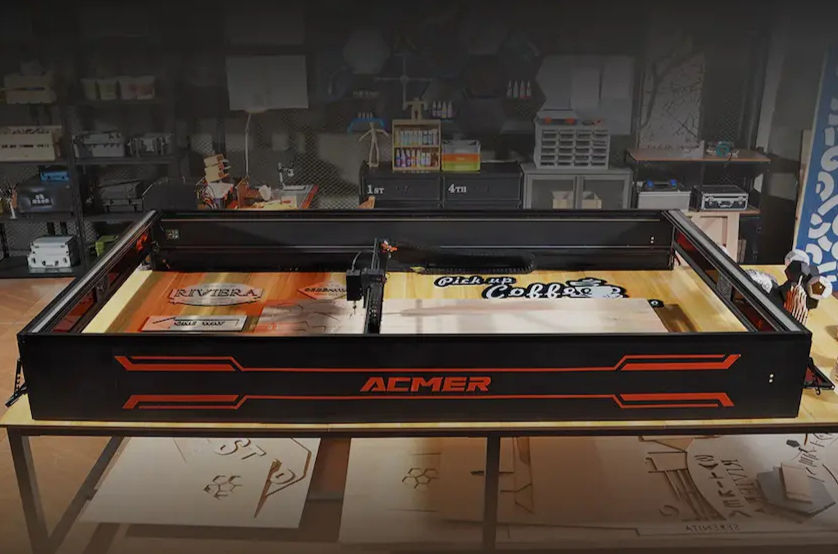

The lineup comes in three sizes. The base X1 covers a 2.62' x 2.62' work area at 25KG. The ACMER X1 Plus expands to 4.10' x 4.10' with a built-in enclosure and dual exhaust fans. The ACMER X1 Ultra reaches 4.10' x 8.04' for full 4x8 sheet processing, also enclosed. CNC and IR module compatibility is limited to the X1 Plus and X1 Ultra. ACMER was founded in 2021, led by Dr. Rem Lin (MIT CTO) and Longrui Peng (MIT CFO), with industrial designer Daniel Pan (two Red Dot Awards) and computational physicist Dr. Charles Cao on the team.
What Problem Does the ACMER X1 Solve for Makers?
Two problems compound each other. First, power without thermal management is power that does not sustain. Most air-cooled diode engravers at high wattage deliver strong initial performance that degrades during long jobs as the laser module heats up. Thermal rolloff affects cut depth, engraving consistency, and ultimately diode lifespan. Second, the maker who needs to cut wood, mark metal, and carve 3D relief typically manages three separate machines, three calibration routines, and three repositioning setups for every project that crosses material types.
This acmer laser engraver addresses both. The IntelliCool™ cooling system holds the diode at sub-30°C regardless of job duration, so output at hour three of a batch run matches output at minute one. The three-head swappable system means wood cutting, metal marking, and CNC relief work happen on the same bed without moving the workpiece between machines. For a small shop managing production volume, that consolidation means fewer machine setups and less floor space in use.
ACMER X1 Laser Engraver Features and Specs: IntelliCool™, Power Modes, 3-in-1 Heads, and Work Area
IntelliCool™ Compressor Water Cooling: Sustaining 120W Continuously
IntelliCool™ is what separates the ACMER X1 laser engraver from most high-power diode lasers on the market. A compressor-based water cooling circuit maintains the diode module at sub-30°C with 400-600W cooling capacity and a coefficient of performance (COP) of 200-300%, substantially more efficient than thermoelectric cooling systems which have a COP below 1. The active cooling loop reaches operating temperature in 10 seconds. A 5-in-1 monitoring system tracks water level, flow rate, return temperature, tank temperature, and dew point continuously to prevent condensation and protect optics.
The cooling circuit uses dry-break, auto-locking couplers that isolate coolant when a head is disconnected, preventing spills during module swaps. Operating noise is rated below 50dB. Without the thermal rolloff that limits sustained output on air-cooled machines, ACMER rates the X1 laser for 15,000 to 20,000 hours of service life under normal conditions. Lifespan varies with duty cycle, ambient temperature, and air-assist use.
Three Power Modes and Cutting Capacity: 20W, 60W, and 120W
The X1 switches between three power modes without hardware changes. At 20W, the spot size is 0.08 x 0.1mm for fine text, small logos, and photo-grade engraving on wood, leather, and slate. At 60W, the spot expands to 0.12 x 0.15mm for jobs that combine engraving and cutting passes. At 120W, the spot is 0.2 x 0.25mm for maximum throughput on thick stock. According to ACMER's internal tests, the 120W mode cuts 3-4x faster than a 40W laser and 2x faster than an 80W laser in like-for-like cutting scenarios.
Cutting capacity at 120W reaches 40mm on paulownia wood, 28mm on plywood, and 30mm on acrylic, per ACMER's published specifications. A 0.03 x 0.03mm red dot alignment laser aids precise positioning. Air assist runs at 50L/min with low-pressure protection. The X1 supports auto focus, Sinking Cut™ for stepped depth passes, and SurfaceSense™ for maintaining focus across curved or organic surfaces.
4W IR Laser and Chisel™ CNC Module on ACMER X1 Plus and X1 Ultra
The 4W infrared laser module operates at 1064nm for metal and ceramic marking that blue diode lasers cannot reach. Compatible materials include aluminum, brass, bronze, copper, stainless steel, carbon steel, titanium, silver, zinc alloy, opaque acrylic, leather, stone, and rubber. According to ACMER, the 4W output produces cleaner, higher-contrast marks than 2W IR modules, though buyers should request sample marks on their specific material before committing. This module is available as an add-on at $489 for the X1 Plus and X1 Ultra, or included in the Ultra 2-in-1 and Ultra 3-in-1 configurations.
The Chisel™ CNC module adds a 200W spindle at 10,000 RPM with a 3.175mm collet for 3D relief, pocketing, and chamfer work in wood, acrylic, plastic, copper, and MDF up to 55mm thickness. CNC is compatible with X1 Plus and X1 Ultra only, and runs through Candle, UGS, or Easel. At 800mm/min, the CNC operates more slowly than dedicated routers, which positions it as a supplementary capability for detail relief and prototyping rather than primary production milling. ACMER positions the acmer x1 ultra 3-in-1 against a combined equivalent setup they estimate at $22,120 in separate equipment. Buyers should assess whether their specific workflow would actually replace those machines before treating that comparison as a direct substitution.
ACMER X1 Ultra Work Area, ACMER Studio™, and Smart Vision Zone
The X1 Ultra's 1,250 x 2,450mm work area supports standard 4x8 panels across US and EU markets. A reinforced Y-axis frame with weight-optimized profiles and dual-motor Y drive resists racking on wide loads. A wider Z-axis carriage increases stiffness for the heavy 120W head and CNC module. Motion reaches 30,000mm/min maximum engraving speed.
ACMER Studio™ is free and subscription-free, compatible with macOS, Windows, Linux, Android, and iOS. AI-assisted features include SmartVision™ camera alignment within the 400 x 400mm Smart Vision Zone, auto-nest with kerf-aware spacing, AI Bridge Cut for automatic hold-in tabs on cutting jobs, and SurfaceSense™ for curved surface mapping. A user-editable material library stores power, speed, and focus presets. LightBurn and LaserGRBL are fully supported for laser workflows.
Should You Back the ACMER X1 on Kickstarter?
A 120W diode laser that holds output continuously is a different product from a 120W diode laser that throttles on long jobs. For a production buyer, that is what makes the ACMER X1 laser engraver on Kickstarter the more honest comparison against cheaper alternatives.
Sign makers running full 4x8 sheets of acrylic through the ACMER X1 Ultra process an entire panel in one setup rather than repositioning mid-cut. Shops combining wood cutting and metal marking on the same project eliminate the machine switch between operations entirely. On long production runs, 24/7 stable output at 120W means no thermal degradation mid-batch. The three-head system does not require all three use cases to apply simultaneously. A buyer who only uses the 120W diode and occasionally swaps to the IR module for a metal marking job gets full value without touching the CNC module.
ACMER raised $568,296 from 144 backers (57x goal). All original campaign orders have been dispatched as of May 2026. Late pledge is still open on Kickstarter. New buyers should confirm shipping timelines directly on the campaign page before pledging.
FAQ about the acmer x1 laser engraver on Kickstarter
How much is the ACMER X1?
The ACMER X1 starts at $2,799 for the base configuration (2.62' x 2.62', 120W diode, no built-in enclosure). The ACMER X1 Plus is $3,699, the X1 Ultra $4,299, the Ultra 2-in-1 $4,699, and the Ultra 3-in-1 $4,999. US shipping adds $150 on most configurations.
What is the ACMER X1 laser?
The ACMER X1 is a 120W diode laser engraver with compressor-based water cooling (IntelliCool™), three switchable power modes (20W, 60W, 120W), and an interchangeable head system that supports a 4W IR laser for metal marking and a 200W CNC module for 3D relief work. It comes in three frame sizes, from the base X1 (2.62' x 2.62') to the X1 Ultra (4.10' x 8.04') for full 4x8 sheet processing.
How powerful is the ACMER X1 laser?
The ACMER X1 delivers 120W of optical output from a diode laser at 450nm. Three switchable modes run at 20W, 60W, and 120W without hardware changes. According to ACMER's internal tests, the 120W mode cuts 3-4x faster than a 40W laser and 2x faster than an 80W laser. Cutting capacity at 120W reaches 40mm on paulownia wood, 28mm on plywood, and 30mm on acrylic. The 4W IR module on Plus and Ultra configurations operates at 1064nm for metal and ceramic marking.
What is the difference between the ACMER X1, X1 Plus, and X1 Ultra?
The base X1 has a 2.62' x 2.62' work area with no built-in enclosure and no CNC module compatibility. The ACMER X1 Plus steps up to 4.10' x 4.10' with a built-in enclosure and CNC module support. The ACMER X1 Ultra delivers a 4.10' x 8.04' work area for full 4x8 sheet processing, also with built-in enclosure and full module compatibility. All three use the same 120W diode head and IntelliCool™ water cooling.
Does the ACMER X1 support LightBurn?
Yes. The ACMER X1 is compatible with LightBurn and LaserGRBL for laser workflows, in addition to ACMER's free ACMER Studio™ software. CNC workflows support Candle, UGS, and Easel. ACMER Studio™ includes AI-assisted features specific to the 120W output and large-format work area that third-party software does not replicate, including SmartVision™ camera alignment and kerf-aware auto-nesting.
Can I still back the ACMER X1 after the campaign ended?
Yes. Late pledge is still open on Kickstarter. All original campaign orders have been dispatched as of May 2026. New buyers through late pledge should confirm current shipping timelines and configuration availability directly on the campaign page before pledging.
