Maslow 4.1 CNC: Large Format Router Kit That Cuts Full Plywood Sheets for $525
- Michael
- 8 hours ago
- 9 min read
Full-sheet CNC routing usually starts at several thousand dollars and a permanent frame. The Maslow 4.1 CNC kit approaches the problem differently: a belt-driven sled that cuts full 4x8 foot sheets of plywood, hardwood, plastic, and aluminum, connects via WiFi from any browser, and anchors to a floor or frame without a fixed steel gantry. When packFfed for storage it is 350mm across and 280mm tall.
The Maslow 4.1 CNC raised $458,405 from 1,432 backers on Kickstarter in December 2024, the team's fourth successful campaign. Bar Smith, the electrical engineer who created the original Maslow seven years ago, and Anna Thomas, who handles manufacturing and logistics, have been refining this design through multiple iterations. The 4.1 builds on the Maslow 4 with an improved calibration process, updated firmware, and revised hardware. The complete Maslow 4.1 CNC kit ships for $525 directly from Maslow CNC. The DeWalt DWP611 router is not included and must be sourced separately.
What it does: Cuts full 4x8 ft sheets with a belt-driven CNC sled instead of a fixed steel gantry.
What changes: Large-format CNC routing becomes possible in a small shop for $525, without a permanent frame or dedicated floor space.
What to know: Router (DeWalt DWP611) sold separately. Kit requires assembly and anchor point installation.
Track record: $458,405 raised from 1,432 Kickstarter backers. Fourth successful Maslow campaign.
From $525 at Maslow CNC
Quick Verdict
Who Is It For?
The Maslow 4.1 CNC is for makers, woodworkers, DIY furniture builders, sign makers, and makerspaces that work primarily with plywood, MDF, hardwood, and sheet plastic. It suits buyers who are comfortable assembling kit hardware, calibrating a machine, and troubleshooting with community support. It is not the right tool for production shops needing high throughput, tight tolerances under ±0.5mm, or a machine that works out of the box without adjustment.
Main Strengths
4x8 foot work area at $525 complete kit: there are very few large-format CNC options near this price with a comparable work area, and few combine this work area, storage size, and flexible mounting at this price.
Fully self-calibrating: the machine pulls each belt taut in sequence, measures tension via current feedback, and runs an algorithm to calculate precise anchor positions automatically. No manual measurement required.
Compact storage: the sled packs to 350mm x 280mm (14x11 inches). Maslow 4.1 mounts to any flat rigid surface, including a shop floor, without a permanent dedicated frame.
No software installation required: connects via WiFi to any browser on any device and runs standard G-code compatible with Fusion 360, FreeCAD, OnShape, Illustrator, and any other CAD/CAM tool.
Fully open source (GPL, Creative Commons SA) with an active community forum: all designs and code are released under open-source licenses, and the community can help with many common setup issues.
Main Limitations
Precision is ±0.5mm (1/64 inch). Suitable for furniture, cabinetry, signs, and most woodworking. Not suitable for precision mechanical parts or close-tolerance work requiring sub-millimeter accuracy.
Router not included. The DeWalt DWP611 is required and purchased separately. Budget an additional $100 to $150 before ordering.
This is a kit requiring assembly, anchor point installation, and calibration. The team's own store page is clear: "still requires a fair amount of fiddling to work well." Early adopter patience is part of the deal.
Is the Maslow 4.1 CNC Worth Buying?
At $525 for a 4x8 foot work area with self-calibration and open-source firmware, the Maslow 4.1 CNC kit is strong value for the right buyer. Add the DeWalt router and you are under $700 for a machine that cuts full plywood sheets. That buyer needs to be comfortable with kit hardware, calibration, and occasional troubleshooting. For woodworkers and makers who fit that profile, there is not much to argue against at this price. Available at Maslow CNC.
What Is the Maslow 4.1 CNC?
The Maslow 4.1 CNC is a large-format CNC router based on a tensegrity belt-drive system. Instead of a rigid steel gantry moving a router head, four steel-reinforced belts extend from a central sled to anchor points at the corners of the work area. Each belt is controlled by a DC servo motor with a planetary gearbox and a high-precision magnetic encoder that measures belt length to within 1/100th of a millimeter. The sled positions itself across the cutting surface by adjusting belt tension across all four axes simultaneously.
The result is a machine that covers a 4x8 foot sheet of material without the steel beams and rails that make traditional large-format CNC routers heavy, expensive, and fixed in place. The five-axis control board drives four servo belt axes plus two stepper motors for z-axis depth control. Note: "five-axis control board" refers to the number of motor axes the controller manages, not five-axis simultaneous machining in the CNC sense. Z-axis travel is 65mm (2.6 inches). Maximum material thickness is 70mm (2.75 inches) cut in multiple passes.
Bar Smith created the original Maslow CNC seven years ago and the project has grown into an open-source community platform. The Maslow 4.1 CNC is the second iteration under Smith and Anna Thomas, incorporating calibration, firmware, and hardware improvements based on Maslow 4 user feedback. All designs and code are released under GPL and Creative Commons SA licenses. The project's Kickstarter campaigns have now funded four generations of the machine.
What Can the Maslow 4.1 CNC Kit Actually Do?
The fundamental capability of the Maslow 4.1 CNC is cutting full 4x8 foot sheets without breaking them down first. Plywood, hardwood, MDF, sheetrock, plastic, and aluminum are all within range. For woodworkers and makers who currently cut sheet material by hand or send designs to a CNC service, the workflow change is significant: design on screen, generate G-code, load the file, cut the sheet.
The ±0.5mm precision is the honest ceiling to understand before buying. That accuracy suits furniture joinery, cabinet panels, decorative cuts, and most woodworking applications comfortably. It does not suit precision mechanical parts or close-tolerance assemblies. Precision depends on calibration quality, and the automatic calibration process addresses the hardest part of that, but the team notes that accuracy improvement is an ongoing development focus.
The machine is genuinely versatile in deployment. Anchored to a shop floor it takes up no additional space. Mounted on a frame it stands 12 feet by 2 feet by 7 feet tall and leans against a wall. The work area is adjustable: a 5x5 foot square is achievable with different anchor placement, and smaller areas work as well. It makes large-format CNC routing accessible to people who could not justify a traditional machine.
The CAM workflow is standard: design in any CAD software, generate G-code in any compatible CAM tool, connect via WiFi and load the file. No internet required. Internal file storage means a WiFi drop during a cut does not interrupt the job. The team is also developing Abundance, their own free and open-source CAD/CAM tool with G-code generation now in early beta.
Maslow 4.1 CNC Kit Features and Specs: Belt Drive, Setup, Software, and Work Area
Maslow CNC Router Belt Drive System: How Tensegrity Routing Works
The Maslow 4.1 CNC uses four steel-reinforced belts extending from a central sled to four anchor points. Each belt spools around a drum driven by a 24-volt DC servo motor with a planetary gearbox. A high-precision magnetic encoder on each roller measures belt length to within 1/100th of a millimeter. The controller adjusts all four belt lengths simultaneously to position the sled.
This approach eliminates the heavy steel rails and gantry beams of traditional large-format CNC routers. The trade-off is that tensegrity-based positioning has different accuracy characteristics from linear guide systems, and precision depends on how accurately anchor point positions are known after calibration.
Maslow 4.1 CNC Setup: Anchors, Router, and Self-Calibration

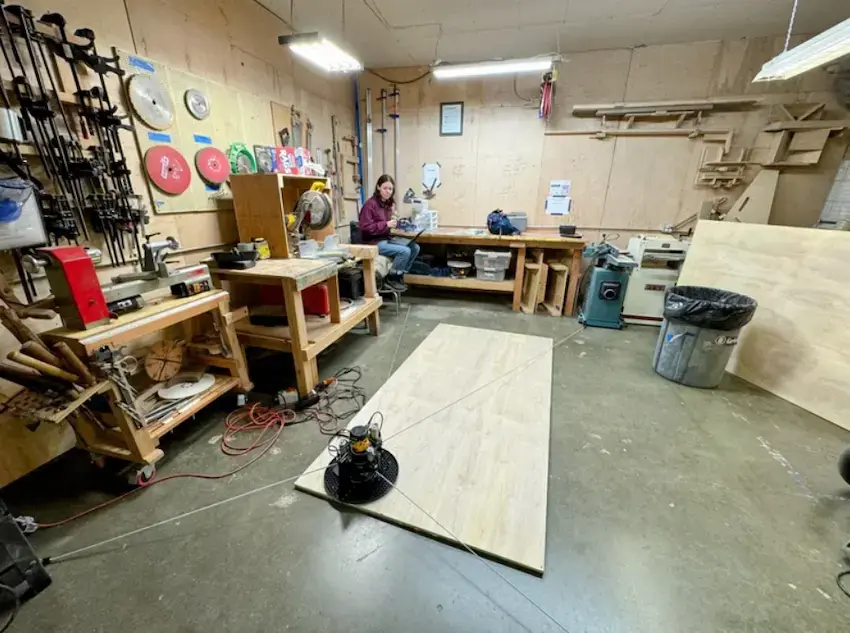

The Maslow 4.1 CNC setup requires four anchor points and a DeWalt DWP611 router (D26200 in 240V countries). Anchor points can be any four rigid attachment points: corners of a frame, bolts in a concrete floor, or points on a workbench. They do not need to be precisely spaced or rectangular. A layout simulator at maslowcnc.github.io/Layout-Simulator helps plan placement before installation.
Self-calibration is fully automatic: at startup, the machine pulls each belt taut in sequence, senses tension via current feedback, records the results, and runs an algorithm to calculate precise anchor positions. No tape measure required. Earlier Maslow generations required manual measurement, which users found inconsistent. The 4.1 solves this automatically, though the team continues to refine calibration accuracy in ongoing firmware updates.
Maslow CNC Software and Browser Control
No software download required. The Maslow 4.1 CNC creates its own "Maslow" WiFi network at startup and is controlled from any browser on any device: Windows, Mac, Linux, iOS, or Android. If connected to a local network, it can be accessed from any device on that network. No internet connection required at any point.
The machine runs GRBL standard G-code (.gcode and .nc files), compatible with any CAD/CAM software: Fusion 360, FreeCAD, OnShape, SolidWorks, Illustrator, Autocad, and others. Internal storage holds hundreds of files. Bluetooth and USB-C connections are also available as alternatives to WiFi.
Maslow CNC Router Work Area, Precision, and Materials
Standard work area is 1.2x2.4 meters (4x8 feet). Work area can be adjusted depending on anchor placement: 5x5 foot is achievable, smaller areas work equally well. The machine needs at least 1 foot clearance from each anchor point and cannot exceed belt length. Maximum material thickness is 70mm (2.75 inches) cut in multiple passes.
Cutting speed is 2,500mm/min (100ipm) x/y and 300mm/min (11ipm) z; typical operating speed is around 2,000mm/min. Precision is ±0.5mm for both repeatability and absolute accuracy after calibration. Materials confirmed include plywood, hardwood, MDF, sheetrock, polycarbonate, acrylic, and aluminum.
Maslow 4.1 CNC Price: What the $525 Kit Includes
The Maslow 4.1 CNC kit is $525 from Maslow CNC. It includes everything needed to start cutting except the router and a surface to mount on. The DeWalt DWP611 (or D26200 in 240V countries) must be sourced separately. Shipping is calculated at checkout. For international orders, import duties and customs are not included in the shipping cost and are the buyer's responsibility. The store accepts returns only for unopened, unbuilt kits; built kits cannot be returned.
For existing Maslow 4 owners, a 4.1 Upgrade kit is available at $60, and a Hardware Only Upgrade for owners who have already upgraded their control boards and encoders is $35. At $525 for a 4x8 foot large-format CNC kit, this is a rare value for buyers comfortable with kit hardware. The total investment including a new DeWalt DWP611 sits around $650 to $700, which remains well below the cost of most large-format CNC routers with comparable work areas. Check current pricing at Maslow CNC.
Should You Buy the Maslow 4.1 CNC?
A 4x8 foot CNC router that packs into a box smaller than a carry-on and costs $525 is a genuinely unusual product. The Maslow 4.1 CNC makes large-format digital fabrication reachable for small shops, home workshops, and makerspaces that could not justify a traditional machine. For a woodworker or furniture maker cutting sheet material by hand or farming out CNC work, the value at this price is hard to dismiss.
The purchase decision comes down to buyer profile, and the team's own store page is the clearest guide: this is an early adopter product that still requires a fair amount of fiddling to work well. The Maslow 4.1 CNC rewards buyers who engage with the machine, learn the calibration process, and participate in the community. It does not suit buyers who want a production-ready machine that works immediately without adjustment. The open-source model, the active forum, and four generations of community-tested development are real assets, but they come alongside a reality that this is still a kit machine with ±0.5mm precision and ongoing firmware development.
For the right buyer, the recommendation is clear. Plan your anchor points, source the DeWalt router separately, budget time for setup and calibration, and the Maslow 4.1 CNC delivers a work area that very few machines at any price can match in a compact format. The kit ships worldwide from Maslow CNC. Buy the Maslow 4.1 CNC kit from Maslow CNC.
FAQ About Maslow 4.1 CNC Machine
What is included in the Maslow 4.1 CNC kit?
The kit includes the Maslow hardware needed to start cutting, but you must provide the DeWalt DWP611 router (DeWalt D26200 in 240V countries), four anchor points, and a flat rigid mounting surface. Anchor points can be bolts in a concrete floor, corner fittings on a frame, or points on a workbench. A dust collection hose adapter is available as a free 3D print file from the Maslow site.
How hard is the Maslow 4.1 CNC setup?
Setup requires installing four anchor points, mounting the sled, connecting the router, and running the automatic calibration process. The calibration is self-guided and does not require manual measurement. The team describes it honestly as a product that "requires a fair amount of fiddling," and the community forums are the primary support resource. Plan for several hours on first setup.
Is the Maslow 4.1 CNC good for beginners?
It depends on what kind of beginner. If you are comfortable building kit hardware, following technical documentation, and troubleshooting with community help, yes. If you expect a plug-and-play machine with minimal setup, no. The Maslow 4.1 CNC is best described as a maker-grade machine for people who enjoy the build process as much as the cutting.
What software does the Maslow CNC use?
No software installation is required. The Maslow 4.1 CNC creates its own WiFi network and is controlled from any web browser. It runs standard GRBL G-code compatible with Fusion 360, FreeCAD, OnShape, Illustrator, Autocad, and any other CAD/CAM tool that exports .gcode or .nc files. The team is also developing Abundance, a free open-source CAD/CAM tool with G-code generation in early beta.
Where can I buy the Maslow 4.1 CNC kit?
The Maslow 4.1 CNC kit is available directly from Maslow CNC for $525. Ships worldwide with shipping calculated at checkout. Import duties and customs are not included for international orders. Returns accepted only for unopened, unbuilt kits.
